产品型号：

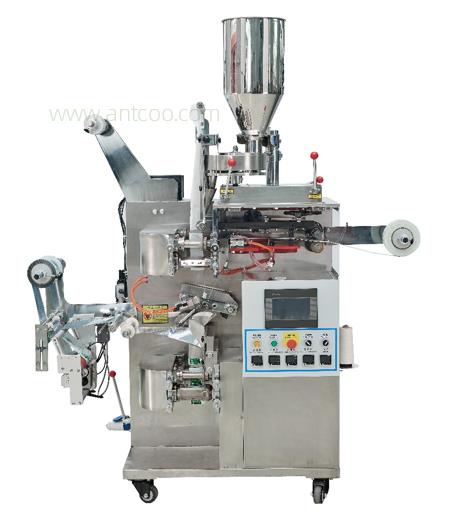

SZ-18

产品名称：

袋泡茶内外袋挂线挂标包装机

适合范围：

本机适用于茶叶、药茶、保健茶等小颗粒物的内外袋一次性包装。

本机特点：

本机是一种新型热封式，多功能全自动袋泡茶饮品包装设备。该机的主要特点是内外袋一次成型，避免了人手与物料的直接接触，提高效率。内袋为过滤棉纸，可自动带线带标签，外袋为复合纸。   其最大的好处在于：贴标和外袋均可采用光电定位，包装容量、内袋、外袋、标签等均可任意调整，可根据用户的不同需要来调整内外袋尺寸，以便达到最理想的包装效果，提高产品外观档次，使产品价值提升。

包装材料

纸/塑、塑/塑、塑/铝/塑、纸/铝/塑、滤纸、棉线、标签纸。

主要技术参数

包装容量：

1~15g

包装速度：

30~50袋/分钟

标签尺寸：

长20~24mm ；宽40~55mm

线长：

155mm

内袋：

长50~70mm ；宽40~80mm

外袋：

长70~120mm ；宽60~90mm

电源：

220V，50HZ，3.7KW

外型尺寸：

长1250*宽700*高1800mm

整机重量：

450KG

Product model:

SZ-18

Product name:

Automatic Double Chamber Tea Bag Packing   Machine

Purpose:

It is suitable for double bag   packing of small granular products, such as tea leafs, medicinal tea and   health care tea.

Feature:

This machine is an automatic multi-functional   tea bag packaging equipment with a new heat sealing type. The inner and outer   bag forming is finished at the same time, avoid direct contact with the packing   material and improve working efficiency. Inner bag is made of filter paper   with thread and tag attached, and outer bag is made of composite paper. The   biggest advantage is: tag attaching and outer bag making can adopt photoelectric   positioning. Packing capacity, inner bag and outer bag size can be easily adjusted   according to different requirements in order to achieve the best packaging   results, improve product appearance and enhance the value of the product.

Packing Material:

Paper/Plastic,Plastic/Plastic,Plastic/Aluminum/Plastic,   Paper/Aluminum/Plastic, Tea filter paper，Thread, Tag paper.

Technical data

Measuring:

Volumetric cup filler

Filling range:

1~15ml

Packing speed

30~50 bags/min

Tag Size

L:20~24mm , W:40~55mm

Thread Length

155mm

 Inner Bag size

 L:50~70mm   , W:40~80mm

 Outer Bag size

 L:70~120mm   , W:60~90mm

Power:

220V, 50HZ, 3.7KW

Dimension (L*W*H):

1250*700*1800mm

Weight:

450KG
